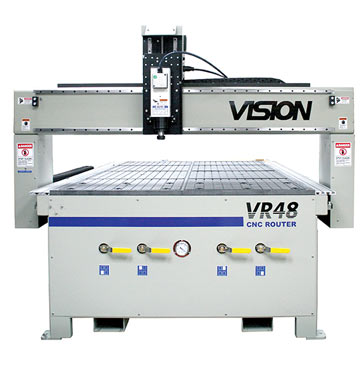

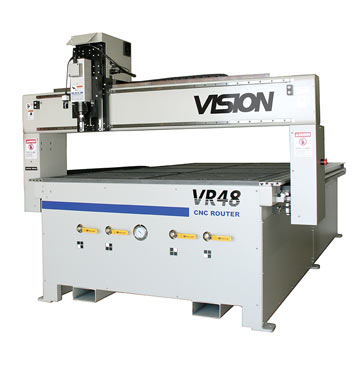

Vision VR48 Router

Vision VR48 Router

Increase Capabilities & Business Revenue!

The VR48 is a heavy-duty CNC router that can produce accurate, repeatable, cost-effective work in considerably less time than it takes to do the same work by hand. Featuring our NEW Series 5 Controller with V-Touch Pendant, graphically advanced Vision software, and Red Laser Pointer
for easy job setup. The VR48 is perfect for a wide variety of applications including milling, drilling, contouring, and routing.

Download Brochure

VR48 CNC Router/Engraver Specifications Chart
Software Vision Express (Expert or PRO optional)
MAX. Work Area 56” x 101”
Maximum Work Piece Size 30.5”(L) x Any Width x 10”(H)
Z-Axis Stroke 12”
Table Resolution .0005”
Spindle Type 3 HP Router Motor (5 HP Optional)
Table Type Aluminum T-slot or optional vacuum table
Interface Ethernet
Controller Series 5 High Speed-Controller With V-Touch Pendant
Warranty 1-Year Limited
Power Requirements T-Slot version: 220 volts, 50 amps, single phase
Physical Dimensions 81”(W) x 129”(D) x 72”(H) – 2,500 lbs
Shipping Dimensions 135”(W) x 70”(D) x 75”(H) – 2,500 lbs
Additional Options Automatic Braille Inserter, DACS (Digitally Aligned Cutting System), 5 HP High Frequency Router Motor, 50,000 RPM Spindle, Oscillating Knife
View full details
Parts Marking
Metal Routing
Wood Routing
Print-to-Cut
ADA Braille Signs

  • The 1624r Offers

    • Red laser pointer for easy job set-up
    • Large 4’ x 8’ work area
    • Ethernet connection
    • 1-year limited warranty
    • New V-Touch Pendant with multi functional touch screeen

  • Why Choose Vision?

    • Leading worldwide manufacturer of engravers and routers
    • Made in the USA since 1983
    • High-quality, reliable products
    • Dedicated technical support
