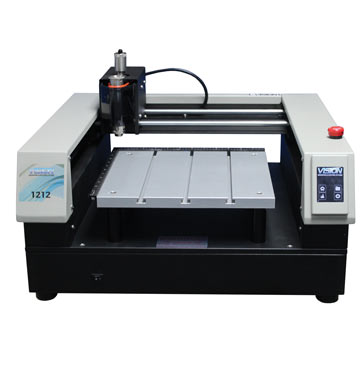

Vision Phoenix 1212 Engraver

Vision Phoenix 1212 Engraver

Increase Capabilities & Business Revenue!

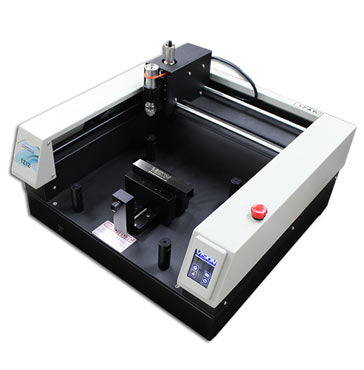

The Series 5 1212 engraver is a user-friendly, desktop engraving machine for those with limited space. It serves as a great production unit for busy shops, and the T-slot table can be interchanged with an optional deep vise for engraving objects up to 3¼” thick. With an 12” x 12 table, this machine is ideal for marking and creating tags, plates, small signs, notary seals, gifts, jewelry, awards, trophy plates, and much more. Engraveable materials include metal, acrylic, brass, wood, or plastic. The easy to use 1212 comes with V-Touch, an advanced integrated touch screen panel, where all the machine controls are at your fingertips.

Download Brochure

Technical Specification
Software Vision Express (Expert or PRO optional)
MAX. Work Area 12 x 12 inches
Maximum Work Piece Size 17.5” (L) x Any Width x 3” (H)
Z-Axis Clearance 1.25 inch (31.75 mm)
Z-Axis Stroke 1” standard (1.75” w/ riser kit)
Table Resolution .0002”
Spindle Type 11/64”, 6mm or 1/4” / Top Loading, Collet Spindle
Available
Table Type Removeable Aluminum T-slot
Interface Ethernet
Warranty 2-Year Limited
Power Requirements 110/220V 15 Amp
Physical Dimensions 21.5”(W) x 24”(D) x 11”(H) – 75 lbs.
Shipping Dimensions 25”(W) x 30”(D) x 19”(H) – 85 lbs. Ground, 87 lbs. Air
Additional Options See Website
View full details
Parts Marking
Metal Routing
Wood Routing
Print-to-Cut
ADA Braille Signs
  • The 1212 Offers

    • Red laser pointer for easy job set-up
    • Electronic Sensor for Automatic Surface Setting
    • Ethernet connection
    • 2-year limited warranty
    • Touch screen operation

  • Why Choose Vision?

    • Leading worldwide manufacturer of engravers and routers
    • Made in the USA since 1983
    • High-quality, reliable products
    • Dedicated technical support
