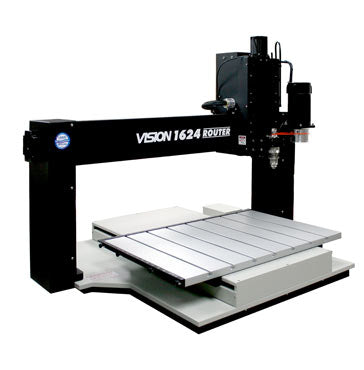

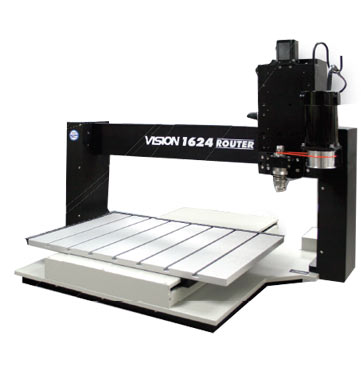

Vision 1624R Router

Vision 1624R Router

Increase Capabilities & Business Revenue!

The NEW 1624 CNC Router / Engraver offers huge capabilities in a small footprint and can produce accurate, repeatable, costeffective work in considerably less time than it takes to do the same work by hand. Featuring our NEW Series 5 Controller with V-Touch Pendant, graphically advanced Vision Pro software, and Red Laser Pointer for easy job setup, the 1624R is perfect for a wide variety of applications including milling, drilling, contouring, and routing.

Download Brochure

1624r Router/Engraver Specifications Chart
Software Vision Express (Expert or PRO optional)
MAX. Work Area 16” x 24”
Maximum Work Piece Size 30.5”(L) x Any Width x 7”(H)
Z-Axis Stroke 7” (Standard) or 10” (Optional)
Table Resolution .0002”
Spindle Type Engraving Head standard (3 HP Router Motor optional)
Table Type Aluminum T-slot
Interface Ethernet
Controller Series 5 High Speed-Controller With V-Touch Pendant
Warranty 2-Year Limited
Power Requirements 110/220V 15 Amp
Physical Dimensions 31.5”(W) x 35”(D) x 19”(H) – 125 lbs /
Shipping Dimensions 43”(W) x 41”(D) x 30”(H) – 275 lbs /
Additional Options Automatic Braille Inserter, DACS (Digitally Aligned Cutting System), 3 HP High-Frequency Router Motor, 50,000 RPM Spindle, Oscillating Knife
View full details

Power Your Precision with Engraving Systems

Discover professional engraving, laser cutting, CNC routing, and marking solutions built for precision and performance.

Contact UsShop Now

CNC Routers Advantage

  • The 1624r Offers

    • Red laser pointer for easy job set-up
    • 16”x24” Work Area
    • Ethernet connection
    • 2-year limited warranty
    • V-Touch Pendant With Multi Functional Touch Screeen

  • Why Choose Vision?

    • Leading worldwide manufacturer of engravers and routers
    • Made in the USA since 1983
    • High-quality, reliable products
    • Dedicated technical support
