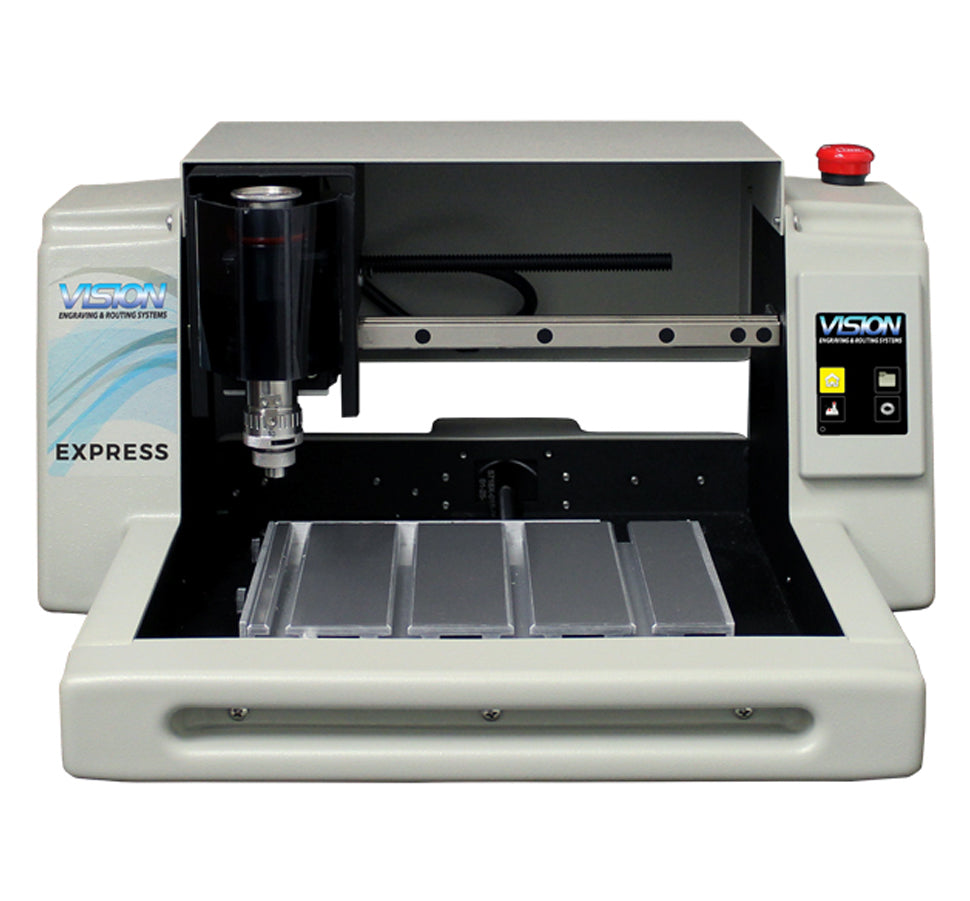

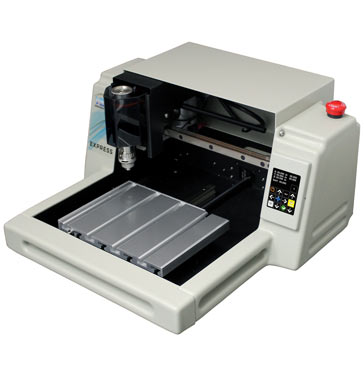

Vision Express Engraver

Vision Express Engraver

Increase Capabilities & Business Revenue!

The Series 5 Vision Express provides high-quality engraving
at an aff ordable price. The Vision Express engraver provides a 6” x 8” engraving area, and has a small footprint of only 17.5” x 17.5”. The Express is an affordable, entry-level engraving machine, ideal for engraving many items like tags, gifts, jewelry, plaques and awards Engraveable materials include metal, acrylic, brass, wood, or plastic. The easy-to-use Vision Express comes with V-Touch, an advanced integrated touch screen panel, where all the machine controls are at your fi ngertips.

Download Brochure

Vision Express Engraver Specifications Chart
Software Vision Express (Expert or PRO optional)
MAX. Work Area 6” x 8” (152.4 mm x 203.2 mm)
Maximum Work Piece Size 8” (203.2 mm) x Unlimited
Z-Axis Stroke 1.25” (31.75 mm)
Table Resolution .0002”
Spindle Type 11/64 inch (4.366 mm) top load
Spindle Motor Power 1/7 HP
Table Type Aluminum T-slot
Interface Ethernet
Warranty 1-Year Limited
Power Requirements 110/220V 3 Amp
Physical Dimensions 9.5” x 17.5” x 17.5” – 24 lbs
Shipping Dimensions 23” x 23” x 19” – 52 lbs. Ground, 61 lbs. Air
Additional Options See Website
View full details
Parts Marking
Metal Routing
Wood Routing
Print-to-Cut
ADA Braille Signs
  • The Express Offers

    • Square linear bearings on all axes
    • 2”/ second maximum feed rate
    • Heavy-duty aluminum t-slot table
    • Adjustable edge guides
    • 11/64” spindle
    • Ethernet connection
    • Touch screen operation
    • Red laser pointer
  • Why Choose Vision?

    • Leading worldwide manufacturer of engravers and routers
    • Made in the USA since 1983
    • High-quality, reliable products
    • Dedicated technical support
