Vision Max Engraver

Vision Max Engraver

Increase Capabilities & Business Revenue!

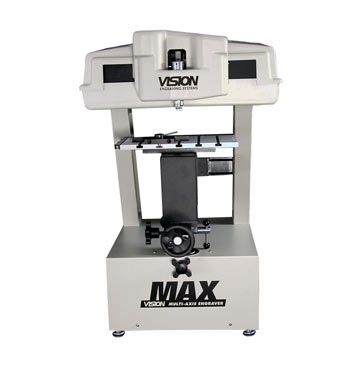

The MAX Engraver is Vision’s Original multi-axis rotary engraving machine. With ngraving speeds of up to 10” per second and a removable 8” x 12” fl at engraving table, the MAX can engrave cylindrical items up to 10” in diameter and fl at items up to 11” thick. The MAX is also ideal for heavy-duty work, including marking industrial items such as tools, cylinders, pipes, and gauges.

Download Brochure

Max Engraver Specifications Chart
Software Vision Express (Expert or PRO optional)
MAX. Work Area 8 x 12 inches
Maximum Work Piece Size Flat 14”(L) x Any Width x 7”(H)
Cylindrical 12” x 6” Diameter
Z-Axis Clearance 3 inch (76.2 mm)
Z-Axis Stroke 3” standard
Spindle Type 11/64”, 6mm or 1/4” Top Loading
Table Type Removeable Aluminum T-slot, Cylindrical
Interface Ethernet
Controller Series 5 High Speed-Intergrated Controller with V-Touch Pendant
Warranty 2-Year Limited
Power Requirements 110/220V 10 Amp
Physical Dimensions 24”(W) x 17”(D) x 33.5”(H) – 140 lbs
Shipping Dimensions 45”(W) x 35”(D) x 42”(H) – 250 lbs
Additional Options Top/Bottom Collet, Ring Attachment
View full details
Parts Marking
Metal Routing
Wood Routing
Print-to-Cut
ADA Braille Signs

  • The Max Offers

    • Removable 8” x 12” aluminum t-slot table

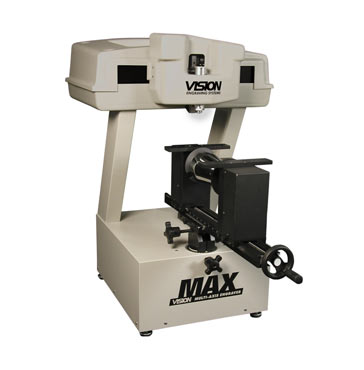

    • Built-in cylindrical feature for engraving round items
    • Self-centering work-holding vise with cones for holding round items
    • V-Touch Pendant With Multi Functional Touch Screeen

  • Why Choose Vision?

    • Leading worldwide manufacturer of engravers and routers
    • Made in the USA since 1983
    • High-quality, reliable products
    • Dedicated technical support
