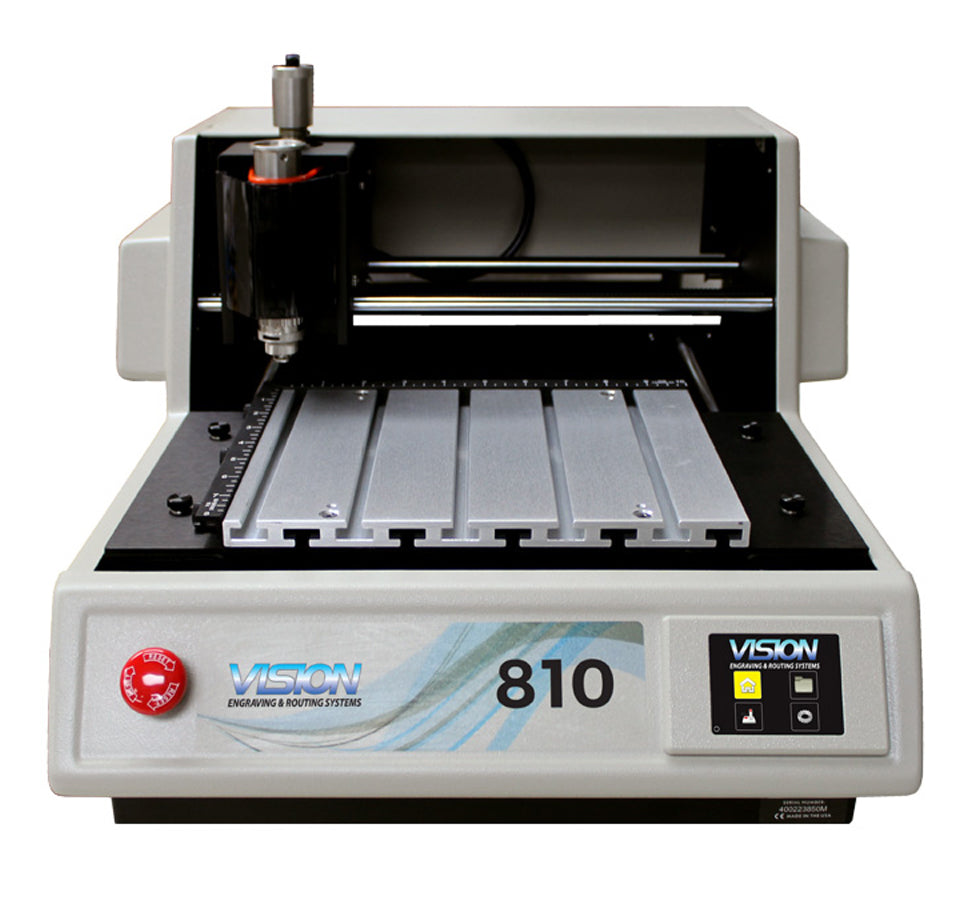

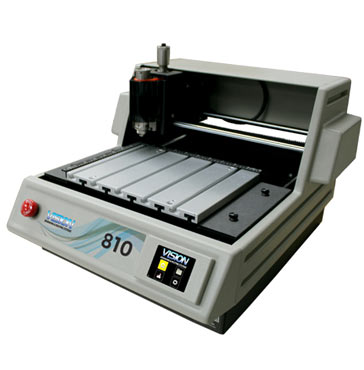

Vision VE-810 Engraver

Vision VE-810 Engraver

Increase Capabilities & Business Revenue!

The Series 5 810 is Vision’s most versatile and cost-effective small desktop engraver. The 810 engraver is perfect for users who are new to engraving or seasoned professionals. With an 8” x 10” table and optional deep vise, this machine is ideal for marking and creating tags, plates, small signs,
notary seals, gifts, jewelry, awards, trophy plates, and much more. Engraveable materials include metal, acrylic, brass, wood, or plastic. The easy-to-use 810 comes with V-Touch, an advanced integrated touchscreen panel, where all the machine controls are at your fingertips.

Download Brochure

810 Engraver Specifications Chart
Software Vision Express Expert or PRO optional)
MAX. Work Area 8 x 10 inches (203.2 x 254 mm)
Maximum Work Piece Size 14.5” (L) x Any Width x 1” (H)
Z-Axis Stroke 1 inch (25.4 mm)
Table Resolution .0002”
Spindle Type 1/4” or 11/64” Top-Load, Collet Spindle Available
Spindle Motor Power 1/7 HP
Table Type Removeable Aluminum T-slot
Interface Ethernet
Warranty 2-Year Limited
Power Requirements 110/220V 2 Amp
Physical Dimensions 14 1/2” x 19” x 22” – 45 lbs.
Shipping Dimensions 27” x 22” x 19” – 60 lbs. Ground, 63 lbs. Air
Additional Options See Website
View full details
Parts Marking
Metal Routing
Wood Routing
Print-to-Cut
ADA Braille Signs
  • The 810 Offers

    • Red laser pointer for easy job set-up
    • Quiet & efficient operation
    • Includes aluminum T-slot table with 1” spindle clearance
    • Ethernet connection
    • Touch Screeen operation
  • Why Choose Vision?

    • Leading worldwide manufacturer of engravers and routers
    • Made in the USA since 1983
    • High-quality, reliable products
    • Dedicated technical support
